CO2 Fractional LaserUser’s Manual
| 🔹 Laser Source & Beam Optics | |
| Wavelength | 10,600 nm (CO₂) |
| Laser Apparatus | Sealed‑off laser device, DC‑simulated |
| Optical Beam Quality | TEM₀₀ (fundamental mode) |
| Output Power | 30 W |
| Spot Size | 0.02 – 0.05 mm² |
| 🔸 Aiming & Beam Delivery | |
| Aiming Beam | Red semiconductor laser (650 nm) |

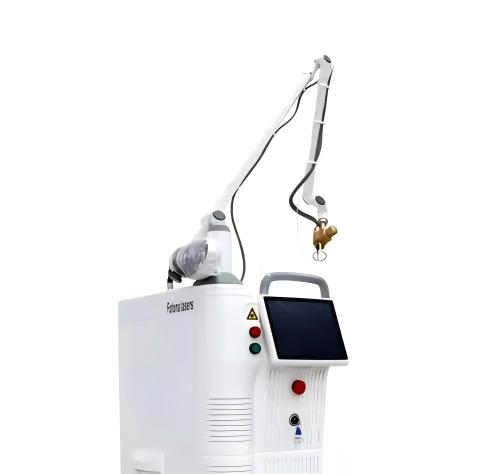

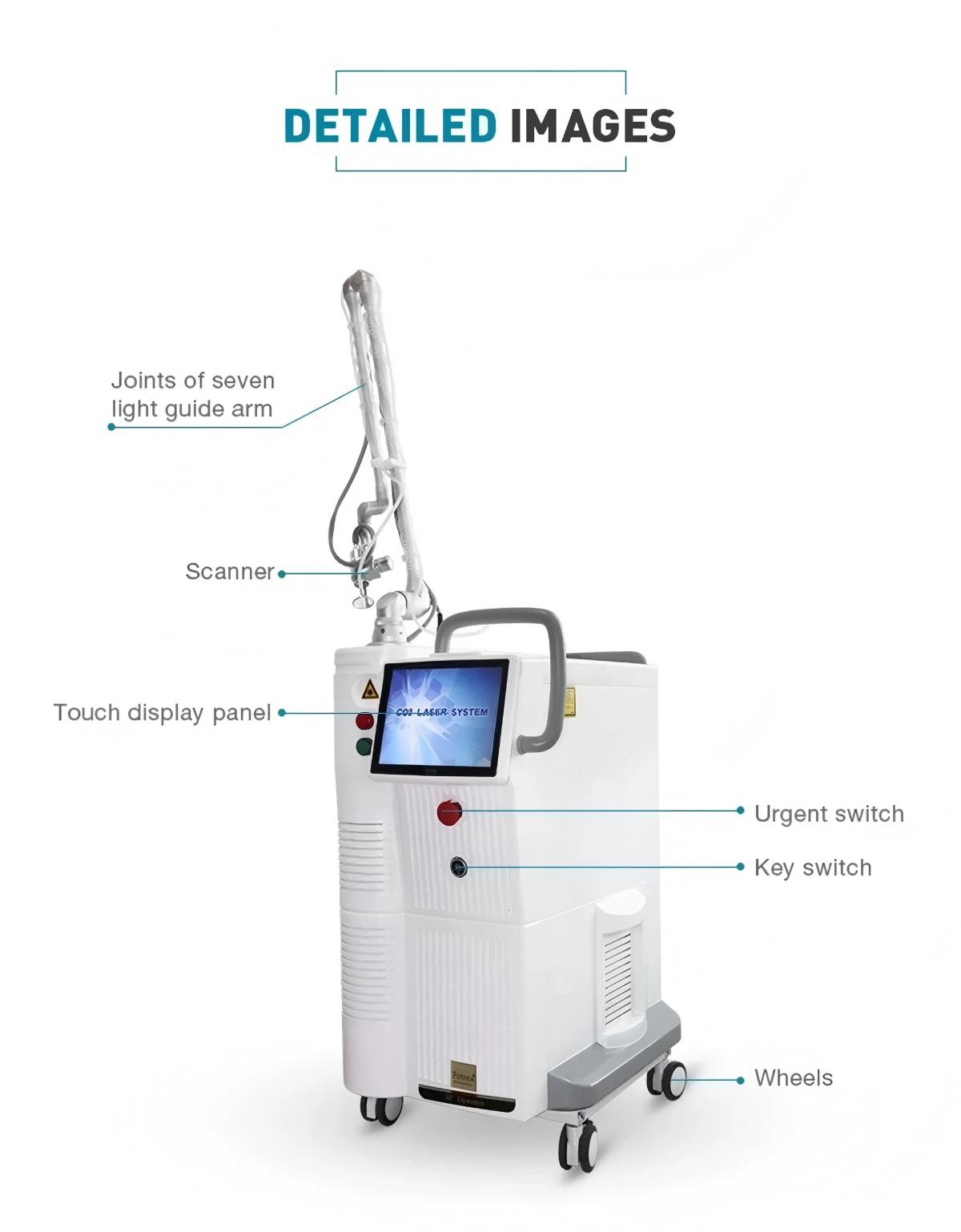

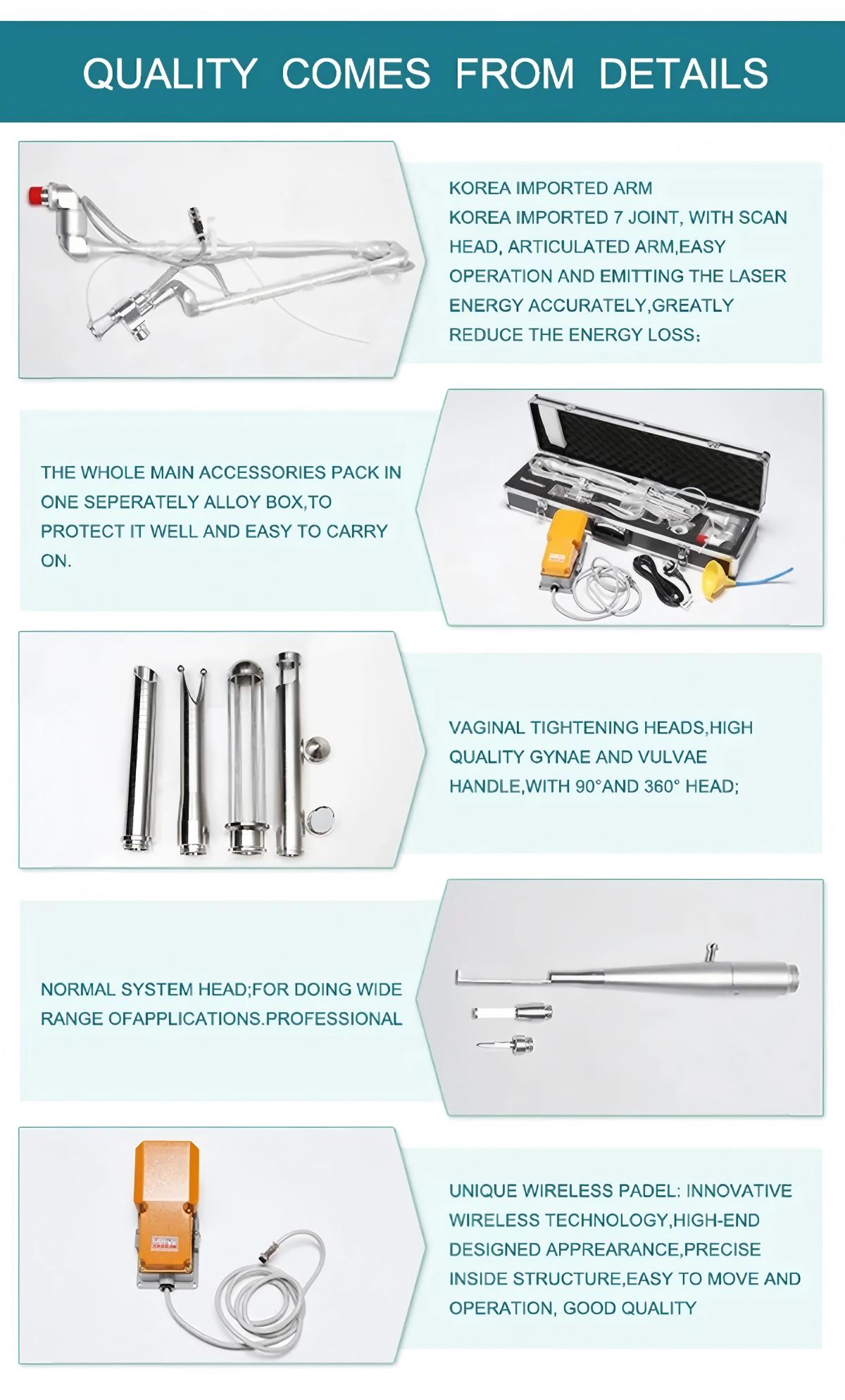

| Beam Transport Device | Articulated arm with 6‑joint & balance weight |
| 🔹 Operation & Output Modes | |
| Working Mode | Continuous operation |
| Output Mode | Continuous • Single pulse • Interval pulse • Super pulse 4‑in‑1 |
| 🔸 Scanning Parameters | |
| Scan Scope | Max 20 × 20 mm | Min 0.1 × 0.1 mm |

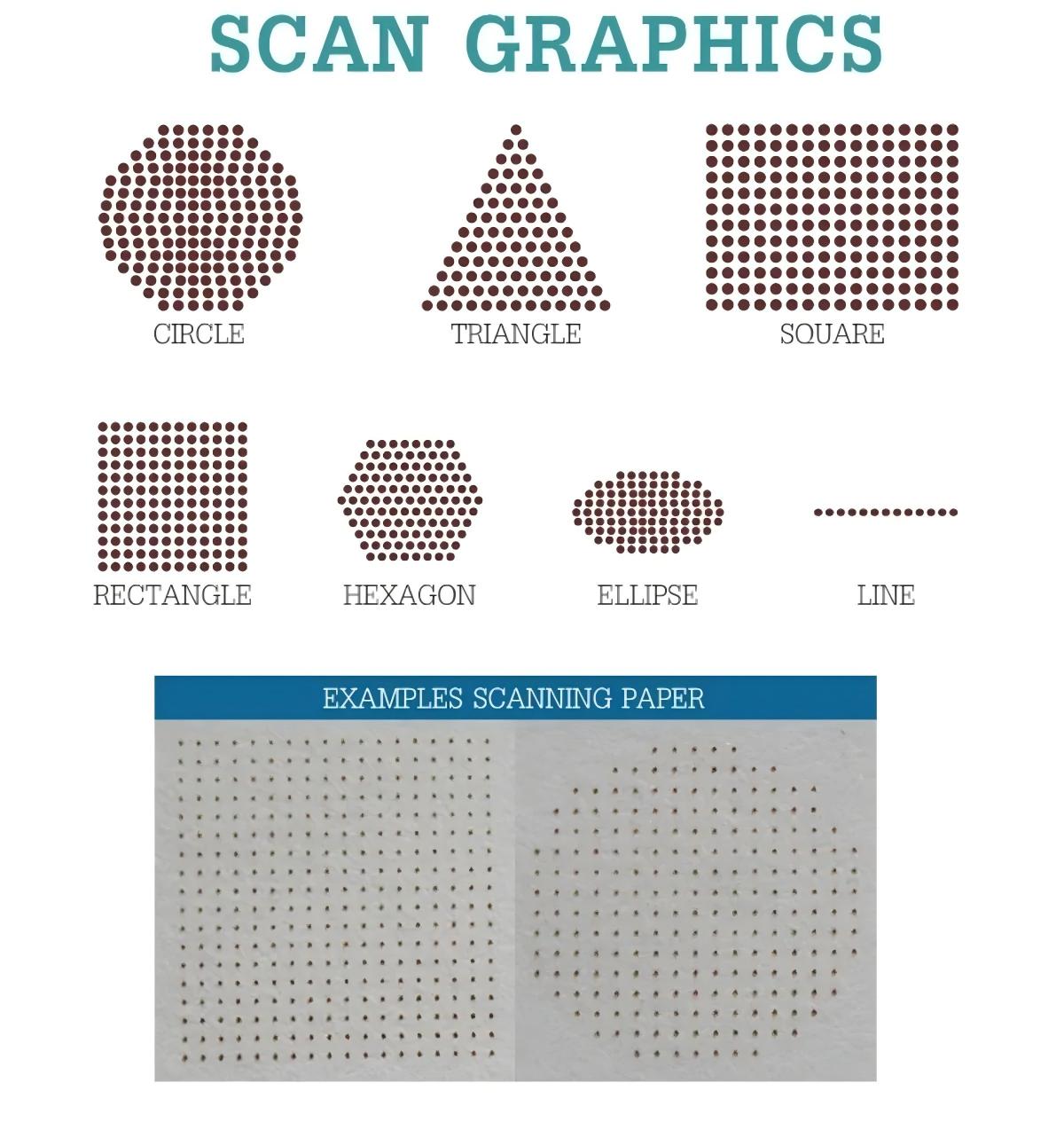

| Scan Graphics | Circle • Triangle • Square • Rectangle • Hexagon • Ellipse • Line |
| Scanning Mode | Random • Normal • Midsplit |
| 🔹 Power, Distance & Cooling | |
| Energy (Power Range) | 1 – 60 W (adjustable) |
| Distance (Step / Focal range) | 0.1 – 2.6 mm |
| Cooling System | Circulating water cooling |
